MIC5235-5.0YM5

PMIC, Voltage Regulators - Linear, 150mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.55 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.40~0.55

PartNumber:: MIC5235-5.0YM5

Brand:: Micrel Semiconductor - Micrel | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. ken Skype : vicko-ken's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-18

From Other Seller

Part Number:MIC5235-5.0YM5
US $0.40 - 0.55
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

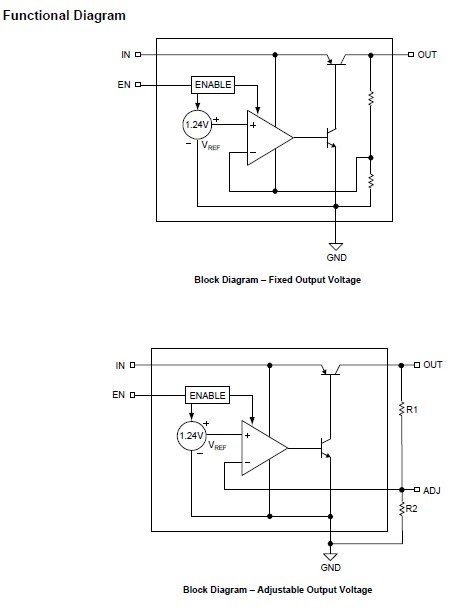

The MIC5235-5.0YM5 is a 150mA highly accurate, low dropout regulator with high input voltage and ultra-low ground current. This combination of high voltage and low ground current makes the MIC5235 ideal for USB and portable electronics applications, using 1-cell, 2-cell or 3-cell Li-Ion battery inputs. A μCap LDO design, the MIC5235-5.0YM5 is stable with either ceramic or tantalum output capacitor. It only requires a 2.2μF capacitor for stability.

Parametrics

Absolute maximum ratings:(1)Input Supply Voltage: –20V to 38V; (2)Enable Input Voltage: –0.3V to 38V; (3)Power Dissipation: Internally Limited; (4)Junction Temperature: –40°C to +125°C; (5)Storage Temperature: –65°C to +150°C; (6)Input Supply Voltage: 2.3V to 24V; (7)Enable Input Voltage: 0V to 24V; (8)Junction Temperature (TJ): –40°C to +125°C; (9)Package Thermal Resistance SOT-23-5 (θJA): 235°C/W.

Features

Features: (1)Wide input voltage range: 2.3V to 24V; (2)Ultra low ground current: 18μA; (3)Low dropout voltage: 310mV at 150mA; (4)High output accuracy: ±2.0% over temperature; (5)μCap: stable with ceramic or tantalum capacitors; (6)Excellent line and load regulation specifications; (7)Zero shutdown current; (8)Reverse battery protection; (9)Reverse leakage protection; (10)Thermal shutdown and current limit protection; (11)IttyBittySOT-23-5 package.
