Product Summary
The TPS3824-30DBVR supervisor provides circuit initialization and timing supervision, primarily for DSP and processor-based systems.The TPS3824-30DBVR device incorporates a manual reset input, MR. A low level at MR causes RESET to become active. The TTPS3824-30DBVR device includes a high-level output RESET. TPS3824-30DBVR has a watchdog timer that is periodically triggered by a positive or negative transition at WDI. When the supervising system fails to retrigger the watchdog circuit within the time-out interval, ttout, RESET becomes active for the time period td. This event also reinitializes the watchdog timer. Leaving WDI unconnected disables the watchdog.
Parametrics
TPS3824-30DBVR absolute maximum ratings: (1)Supply voltage, VDD: 6 V; (2)RESET, RESET, MR, WDI: -0.3 V to (VDD + 0.3 V); (3)Maximum low output current, IOL: 5 mA; (4)Maximum high output current, IOH: -5 mA; (5)Input clamp current range, IIK (VI < 0 or VI > VDD): ±10 mA; (6)Output clamp current range, IOK (VO < 0 or VO > VDD): ±10 mA; (7)Operating free-air temperature range, TA: -40℃ to 85℃; (8)Storage temperature range, Tstg: -65℃ to 150℃; (9)Soldering temperature: 260℃.
Features

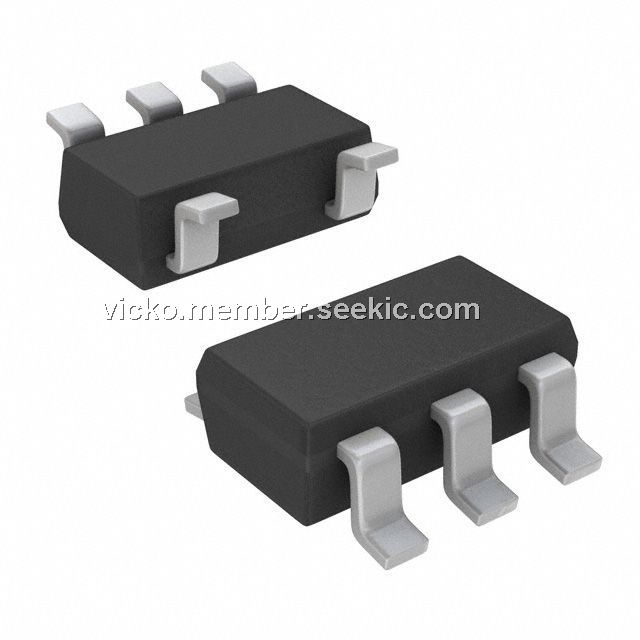

TPS3824-30DBVR features: (1)Power-On Reset Generator With Fixed Delay Time of 200 ms (TPS3823/4/5/8) or 25 ms (TPS3820); (2)Manual Reset Input (TPS3820/3/5/8); (3)Reset Output Available in Active-Low (TPS3820/3/4/5), Active-High (TPS3824) and Open-Drain (TPS3828); (4)Supply Voltage Supervision Range: 2.5 V, 3 V, 3.3 V, 5 V; (5)Watchdog Timer (TPS3820/3/4/8); (6)Supply Current of 15 μA (Typ); (7)SOT23-5 Package; (8)Temperature Range: -40℃ to 85℃.

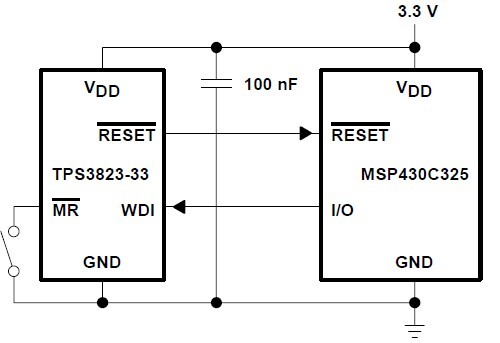

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS3824-30DBVR |
Texas Instruments |
Supervisory Circuits 2.63V Monitor |
Data Sheet |
|
|
||||||||||||
|
TPS3824-30DBVRG4 |
Texas Instruments |
Supervisory Circuits Supply Voltage Supervisor |
Data Sheet |
|
|
||||||||||||
