Product Summary

The MIC5205YM5 is an efficient linear voltage regulator with ultra low-noise output, very low dropout voltage (typically 17mV at light loads and 165mV at 150mA), and very low ground current (600mA at 100mA output). The MIC5205YM5 offers better than 1% initial accuracy. Designed especially for hand-held, battery-powered devices, the MIC5205YM5 includes a CMOS or TTL compatible enable/shutdown control input. When shut down, power consumption drops nearly to zero. Regulator ground current increases only slightly in dropout, further prolonging battery life. Key MIC5205YM5 features include a reference bypass pin to improve its already excellent low-noise performance, reversed-battery protection, current limiting, and overtemperature shutdown. The MIC5205YM5 is available in fixed and adjustable output voltage versions in a small SOT-23-5 package.

Parametrics

Absolute maximum ratings:(1)supply input voltage (Vin):-20V to +20V;(2)enable input voltage (VEN):-20V to +20V;(3)power dissipation (PD):internally limited;(4)lead temperature (soldering, 5 sec.):260°C;(5)junction temperature (TJ):-40°C to +125°C;(6)storage temperature (Ts):-65°C to +150°C;(7)input voltage (VIN):+2.5V to +16V;(8)enable input voltage (VEN):0V to VIN.

Features

Features: (1)ultra-low-noise output; (2)high output voltage accuracy; (3)guaranteed 150ma output; (4)low quiescent current; (5)low dropout voltage; (6)extremely tight load and line regulation; (7)very low temperature coefficient; (8)current and thermal limiting; (9)reverse-battery protec-tion; (10)"zero" off-mode current; (11)logic-controlled electronic enable.

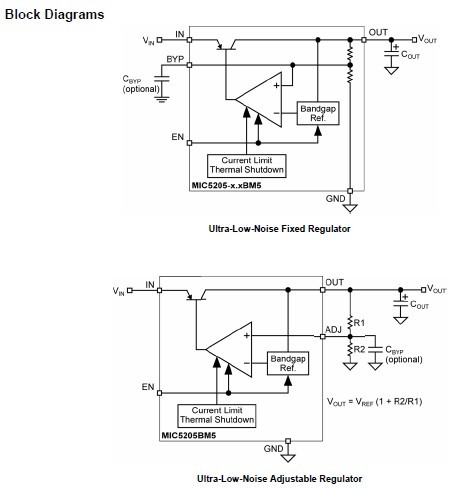

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MIC5205YM5
MIC5205YM5
Other

Data Sheet
Negotiable
MIC5205YM5 TR
MIC5205YM5 TR

IC REG LDO ADJ .15A SOT23-5
Data Sheet
0-1: $0.58
1-10: $0.50
10-25: $0.45
25-100: $0.40
100-250: $0.34
250-500: $0.29
500-1000: $0.23
