Product Summary
The CAT823RTDI-GT3 system supervisory voltage reset provides basic reset and monitoring functions for the electronic systems. The device monitors the system voltage and maintains a reset output until that voltage reaches the CAT823RTDI-GT3 specified trip value and then maintains the reset output active condition until the device internal timer, after a minimum timer of 140ms; to allow the systems power supply to stabilize. The CAT823RTDI-GT3 also has a watchdog input which can be used to monitor a system signal and cause a reset to be issued if the signal fails to change state prior to a timeout condition. The CAT823RTDI-GT3 also provides a manual reset input which can be used to initiate reset if pulled low. This input can be directly attached to a pushbutton or a processor signal.
Parametrics
CAT823RTDI-GT3 absolute maximum ratings: (1)Supply Voltage: 6 V; (2)All other pins: -0.3 to (VCC + 0.3) V; (3)Input Current, VCC: 20 mA; (4)Output Current RESET, RESET: 20 mA; (5)Continuous Power Dissipations (TA = +70℃), SC-70 5-lead (derate 3.1mW/℃ above +70℃): 247 mW; TSOT-23 5-lead (derate 7.1mW/℃ above +70℃): 571 mW; (6)Storage Temperature: -65 to 150 ℃; (7)Operating Ambient Temperature: -40 to +85 ℃; (8)Lead Soldering (10 seconds max): +300 ℃; (9)ESD Rating: Low Voltage Pins; Human Body Model: 2000 V; Machine Model: 200 V.
Features
CAT823RTDI-GT3 features: (1)Automatically restarts microprocessor after Power failure; (2)Monitors pushbuttofor external override; (3)Accurate under voltage system monitoring; (4)Brownout detectiosystem reset for use with 3.0, 3.3, and 5.0 volt systems; (5)Piand functiocompatible with the MAX823/24/25 products; (6)Operating Range from -40℃ to +85℃; (7)Available in TSOT-23 5-lead and SC-70 packages.

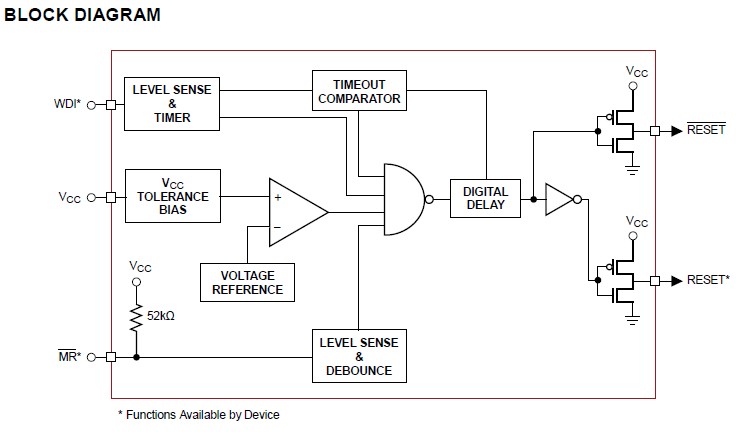

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

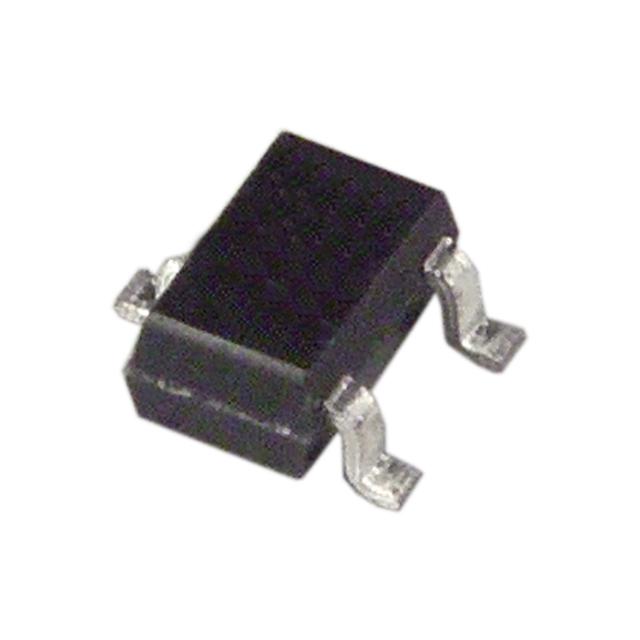

![]() CAT823RTDI-GT3 |
![]() ON Semiconductor |
![]() Supervisory Circuits act low MR/WD |
![]() Data Sheet |
![]()
|
|
||||||||||||
