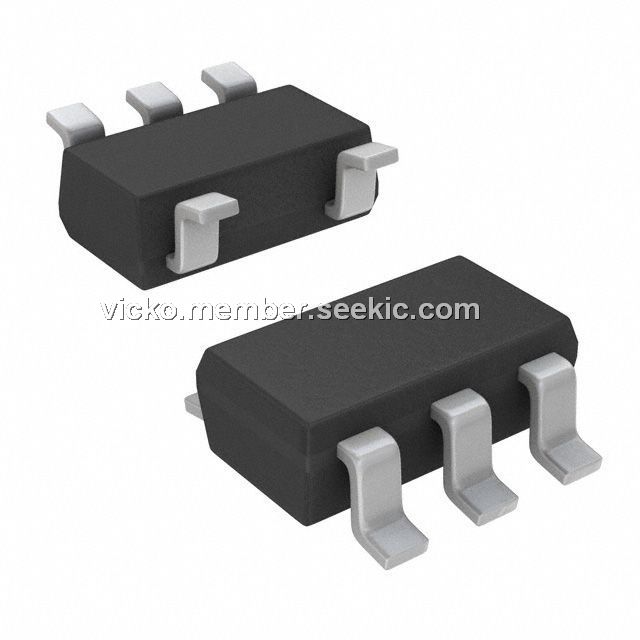

MIC5255-2.5YD5

Low Noise, μCap CMOS LDO, SOT23-5, 2.7V to 6.0V Input voltage range, 90μA quiescent current

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.31~0.35 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.31~0.35

PartNumber:: MIC5255-2.5YD5

Brand:: Micrel Semiconductor - Micrel | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. ken Skype : vicko-ken's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-15

From Other Seller

Part Number:MIC5255-2.5YD5
US $0.31 - 0.35
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MIC5255-2.5YD5 is an efficient, precise CMOS voltage regulator optimized for ultra-low-noise applications. It offers 1% initial accuracy, extremely-low dropout voltage (135mV at 150mA) and low ground current (typically 90μA). The MIC5255-2.5YD5 provides a very-low-noise output, ideal for RF applications where a clean voltage source is required. A noise bypass pin is also available for further reduction of output noise. Designed specifically for handheld and battery-powered devices, the MIC5255-2.5YD5 provides a TTL-logic-compatible enable pin. When disabled, power consumption drops nearly to zero. The MIC5255-2.5YD5 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in handheld wireless devices.

Parametrics

MIC5255-2.5YD5 absolute maximum ratings: (1)Supply Voltage (VIN): 0V to +7V; (2)Enable Voltage (VEN): 0V to +7V; (3)Power Dissipation (PD): Internally Limited(3); (4)Junction Temperature (TJ): -40℃ to +125℃; (5)Storage Temperature (Ts): -60℃ to +150℃; (6)Lead Temperature (soldering, 5 sec.): 260℃; (7)EDS Rating: 2kV.

Features

MIC5255-2.5YD5 features: (1)Input voltage range: 2.7V to 6.0V; (2)Thin SOT package: 1mm height SOT-23-5; (3)Ultra-low output noise: 30μV(rms); (4)Stability with ceramic output capacitors; (5)Ultra-low dropout: 135mV @ 150mA; (6)High output accuracy: 1.0% initial accuracy; 2.0% over temperature; (7)Low quiescent current: 90μA; (8)Tight load and line regulation; (9)TTL-Logic-controlled enable input; (10)Zero off mode current; (11)Thermal shutdown and current limit protection.
