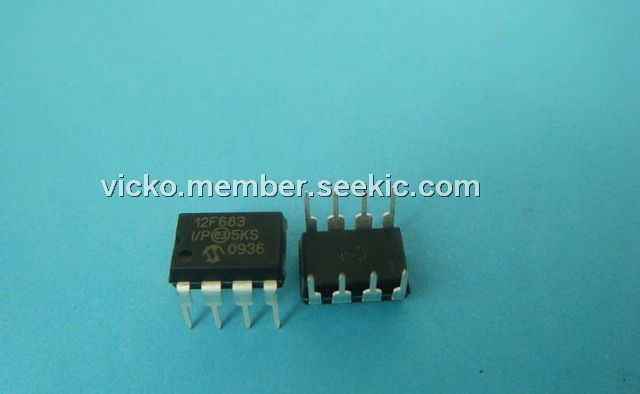

PIC12F683-I/P

8-Pin Flash-Based, 8-Bit CMOS Microcontrollers, 8-pin PDIP, SOIC and DFN-S

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.05~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.05~1.50

PartNumber:: PIC12F683-I/P

Brand:: Microchip Technology - Microchip | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. ken Skype : vicko-ken's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-18

From Other Seller

Part Number:PIC12F683-I/P
US $1.05 - 1.50
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

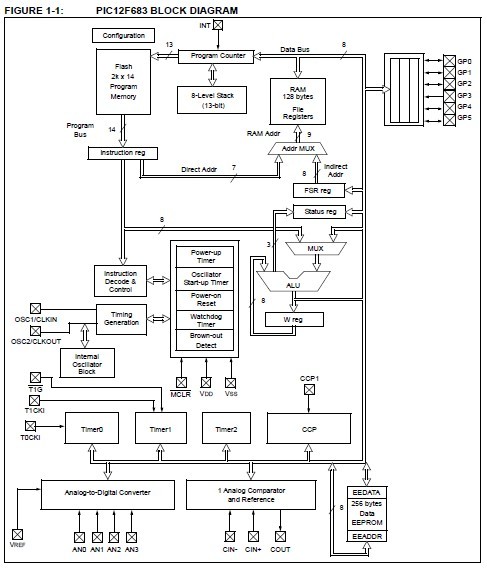

The PIC12F683-I/P is designed as one kind of 8-pin flash-based, 8-bit CMOS microcontroller. The PIC12F683-I/P is covered by this data sheet. It is available in 8-pin PDIP, SOIC and DFN-S packages. Figure 1-1 shows a block diagram of the -I/P device. Table 1-1 shows the pinout description. Additional information may be found in the “PICmicro® Mid-Range MCU Family Reference Manual” (DS33023), which may be obtained from your local Microchip Sales Representative or downloaded from the Microchip web site. The reference manual should be considered a complementary document to this data sheet and is highly recommended reading for a better understanding of the device architecture and operation of the peripheral modules.

Parametrics

Absolute maximum ratings:(1)Ambient temperature under bias: -40°C to +125°C;(2)Storage temperature: -65°C to +150°C;(3)Voltage on VDD with respect to Vss: -0.3 V to +6.5 V;(4)Voltage on MCLR with respect to Vss: -0.3 V to +13.5 V;(5)Voltage on all other pins with respect to Vss: -0.3 V to (VDD + 0.3 V);(6)Total power dissipation: 800 mW;(7)Maximum current out of VSS pin: 300 mA;(8)Maximum current into VDD pin: 250 mA;(9)Output clamp current, IOK (Vo < 0 or Vo >VDD): +/- 20 mA;(10)Maximum output current sunk by any I/O pin: 25 mA.

Features

Features: (1)Power-saving Sleep mode;(2)Wide operating voltage range. (2.0 V-5.5 V);(3)Industrial and Extended temperature range;(4)Power-on Reset (POR);(5)Programmable code protection;(6)Direct, Indirect and Relative Addressing modes;(7)8-level deep hardware stack;(8)Interrupt capability;(9)6 I/O pins with individual direction control: High current source/sink for direct LED drive, Interrupt-on-pin change, Individually programmable weak pull-ups and Ultra Low-Power Wake-up on GP0;(10)One analog comparator.
