Product Summary
The MIC2025-2YMM is a high-side MOSFET switch optimized for general-purpose power distribution requiring circuit protection. The MIC2025-2YMM is internally current limited and has thermal shutdown that protects the device and load. It offers “smart” thermal shutdown that reduces current consumption in fault modes. When a thermal shutdown fault occurs, the output is latched off until the faulty load is removed. Removing the load or toggling the enable input will reset the device output.
Parametrics
Absolute maximum ratings: (1)Supply Voltage (VIN): –0.3V to 6V; (2)Fault Flag Voltage (VFLG): +6V; (3)Fault Flag Current (IFLG): 25mA; (4)Output Voltage (VOUT): +6V; (5)Output Current (IOUT): Internally Limited; (6)Enable Input (IEN): –0.3V to VIN +3V; (7)Storage Temperature (TS): –65°C to +150°C.
Features
Features: (1)140mΩ maximum on-resistance; (2)2.7V to 5.5V operating range; (3)500mA minimum continuous output current; (4)Short-circuit protection with thermal shutdown; (5)Fault status flag with 3ms filter eliminates false assertions.

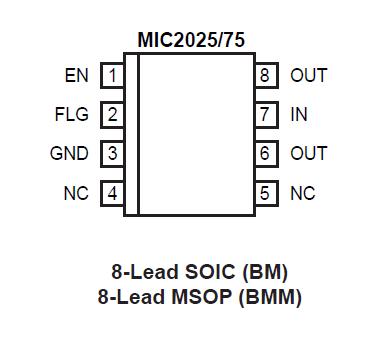

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC2025-2YMM |
|
IC DISTRIBUTION SW SGL 8-MSOP |
Data Sheet |
|
|
||||||||||||||
|

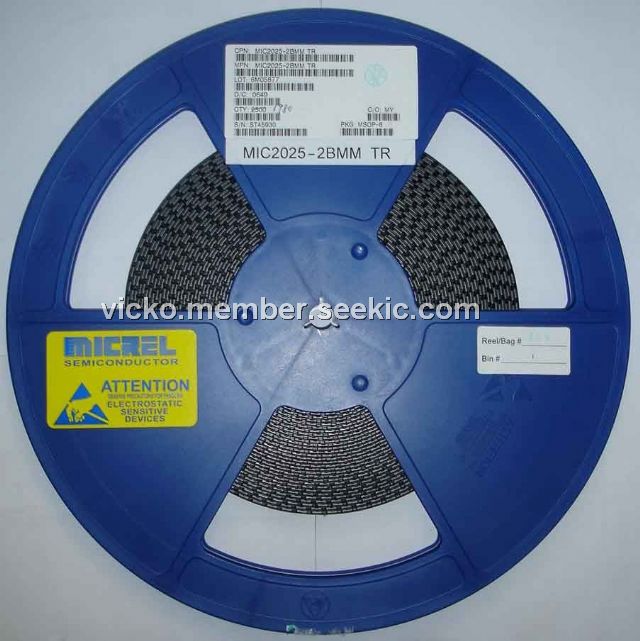

MIC2025-2YMM TR |
|
IC DISTRIBUTION SW SGL 8-MSOP |
Data Sheet |
|
|
||||||||||||||
