Product Summary
The MIC2169BMM is a high-efficiency, simple to use 500kHz PWM synchronous buck control IC housed in a small MSOP-10 ePad package. It allows compact DC/DC solutions with a minimal external component count and cost. The MIC2169B operates from a 3V to 14.5V input, without the need of any additional bias voltage. The output voltage can be precisely regulated down to 0.8V.
Parametrics
Absolute maximum ratings: (1)Supply Voltage (VIN): -0.3V to 15.5V; (2)Booststrapped Voltage (VBST): -0.3V to VIN +6V; (3)VSW: -0.3V to 15.5V; (4)CS: 15.25V; (5)FB: -0.3V to 6V; (6)Junction Temperature (TJ): -40°C ≤ TJ ≤ +125°C; (7)Storage Temperature (TS): -65°C to +150°C; (8)Peak Reflow Temperature (10 to 20 sec): +260°C; (9)ESD (HBM): 2kV; (10)ESD (MM): 200V.
Features
Features: (1)3V to 14.5V input voltage range; (2)Adjustable output voltage down to 0.8V; (3)500kHz PWM operation; (4)Up to 95% efficiency; (5)Output Pre-biased Protection; (6)Build-in 2.2?drivers to drive two N-channel MOSFETs.

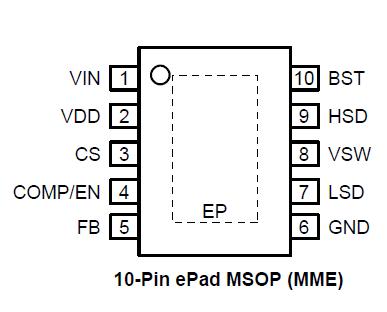

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC2169BMM |
|
IC REG CTRLR BUCK PWM VM 10-MSOP |
Data Sheet |
Negotiable |
|
||||
|

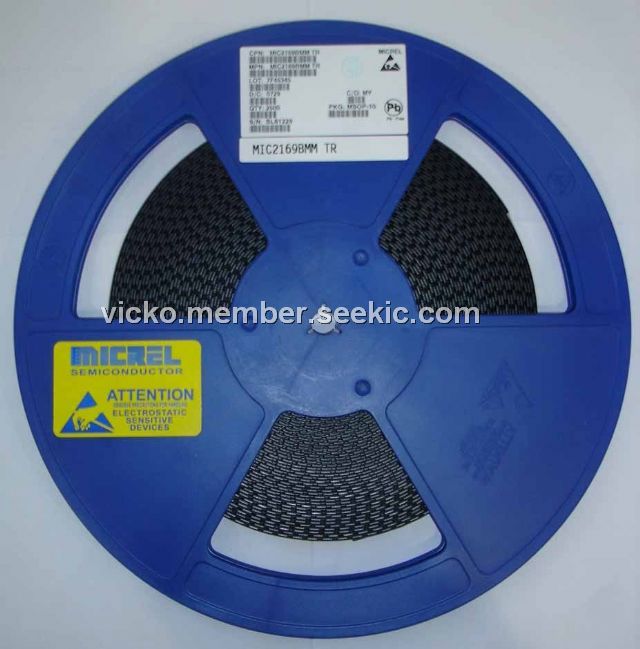

MIC2169BMM TR |
|
IC REG CTRLR BUCK PWM VM 10-MSOP |
Data Sheet |
Negotiable |
|
||||
