Product Summary

The MIC49150YMM is a high-bandwidth, low-dropout, 1.5A voltage regulator ideal for powering core voltages of lowpower microprocessors. The MIC49150YMM implements a dual supply configuration allowing for very low output impedance and very fast transient response. The MIC49150YMM requires a bias input supply and a main input supply, allowing for ultra-low input voltages on the main supply rail. The input supply operates from 1.4V to 6.5V and the bias supply requires between 3V and 6.5V for proper operation. The MIC49150 offers fixed output voltages from 0.9V to 1.8V and adjustable output voltages down to 0.9V. The MIC49150YMM requires a minimum of output capacitance for stability, working optimally with small ceramic capacitors. The MIC49150YMM is available in an 8-pin power MSOP package and a 5-pin S-Pak. Its operating temperature range is –40°C to +125°C.

Parametrics

Absolute maximum ratings:(1)Supply Voltage (VIN): 8V; (2)Bias Supply Voltage (VBIAS): 8V; (3)Enable Input Voltage (VEN): 8V; (4)Power Dissipation: Internally Limited; (5)ESD Rating: 4kV; (6)Supply Voltage (VIN): 1.4V to 6.5V; (7)Bias Supply Voltage (VBIAS): 3V to 6.5V; (8)Enable Input Voltage (VEN): 0V to 6.5V; (9)Junction Temperature (TJ): –40°C ≤ TJ ≤ +125°C; (10)Package Thermal Resistance MSOP-8 (θJA): 80°C/W; (11)Package Thermal Resistance S-Pak (θJC): 2°C/W.

Features

Features: (1)Input Voltage Range: VIN: 1.4V to 6.5V, VBIAS: 3.0V to 6.5V; (2)Stable with 1μF ceramic capacitor; (3)±1% initial tolerance; (4)Maximum dropout voltage (VIN–VOUT) of 500mV over temperature; (5)Adjustable output voltage down to 0.9V; (6)Ultra fast transient response (Up to 10MHz bandwidth); (7)Excellent line and load regulation specifications; (8)Logic controlled shutdown option; (9)Thermal shutdown and current limit protection; (10)Power MSOP-8 and S-Pak packages; (11)Junction temperature range: –40°C to 125°C.

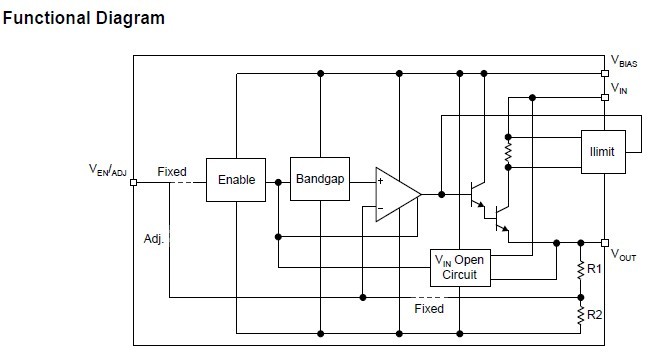

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MIC49150YMM
MIC49150YMM

IC REG LDO ADJ 1.5A 8MSOP
Data Sheet
0-1: $2.20
1-25: $1.76
25-100: $1.37
100-250: $1.30
250-500: $1.27
MIC49150YMM TR
MIC49150YMM TR

IC REG LDO ADJ 1.5A 8MSOP
Data Sheet
0-2500: $1.23
