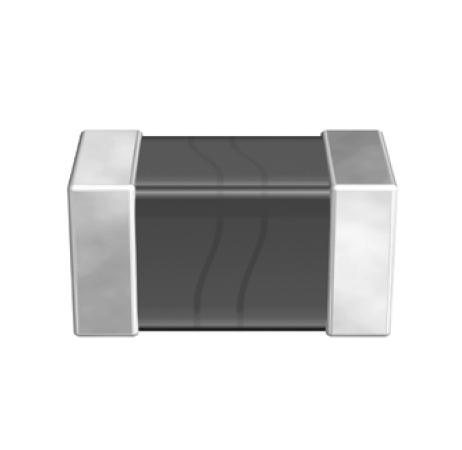

The B82496C3330J is a SMT power inductor with copper-plated core, laser-cutting winding and epoxy-coated. It has a wide application in resonant circuit, impedance matching for multimedia, car access systems, wireless communication systems, TPMS (Tire Pressure Monitoring System), GPS (Global Positioning System) and digital cameras.
Parametrics
Characteristics: (1)Rated inductance LR: Measured with impedance analyzer Agilent 4291A and test fixture Agilent 16196A at frequency fL, 0.1 V,20鈩? (2)Q factor Qmin, Qtyp: Measured with impedance analyzer Agilent 4291A and test fixture Agilent 16196A, Qmin measured at frequency fQ, 20鈩? (3)Rated temperature TR: 125鈩? (4)Rated current IR: Maximum permissible DC with a temperature increase of 鈮?15 K at rated temperature; (5)Self-resonance frequency fres,min: Measured with network analyzer Agilent 8720D, 20 鈩? (6)DC resistance Rmax: Measured at 20 鈩? (7)Solderability (lead-free): Sn95.5 Ag3.8 Cu0.7: (245 卤5) 鈩? (5 卤0.3) s Wetting of soldering area 鈮?95% (based on IEC 60068-2-58); (8)Resistance to soldering heat: 260 鈩? 40 s (as referenced in JEDEC J-STD 020C); (9)Climatic category: 55/150/56 (to IEC 60068-1); (10)Storage conditions of Mounted: 鈥?5 鈩?to +150 鈩? (11)Storage conditions of Packaged: 鈥?5 鈩?to +40 鈩? 鈮?75% RH; (12)Weight Approx: 4mg.
Features
Features: (1)Temperature range up to 150鈩? (2)High resonance frequency; (3)Close inductance tolerance; (4)Free of polarization effect; (5)High mechanical stability; (6)Qualified to AEC-Q200; (7)Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020C; (8)RoHS-compatible.
