Product Summary

The MIC94062YC6 is a high-side load switch designed for operation between 1.7V to 5.5V. The device contains a low on-resistance P-channel MOSFET that supports over 2A of continuous current. The MIC94062-63 provides a slew rate controlled Soft-Start turn-on of 800μs (typical) to prevent in-rush current from glitching supply rails. An active pull-down on the enable input keeps MIC94062YC6 in a default OFF state until the EN pin is pulled to a high level. Built-in level shift circuitry allows low voltage logic signals to switch higher supply voltages, or vice versa; high level logic signals can control low level voltages.

Parametrics

MIC94062YC6 absolute maximum ratings: (1)Input Voltage (VIN): +6V; (2)Enable Voltage (VEN): +6V; (3)Continuous Drain Current (ID) TA = 25℃: ±2A; TA = 85℃: ±1.4A; (4)Pulsed Drain Current (IDP): ±6A; (5)Continuous Diode Current (IS): -50mA; (6)Storage Temperature (Ts): -55℃ to +150℃; (7)EDS Rating - HBM: 4KV.

Features

MIC94062YC6 features: (1)1.7V to 5.5V input voltage range; (2)2A continuous operating current; (3)77m(typ) RON; (4)Built-in level shift for control logic; can be operated by 1.5V logic.; (5)Low 2μA quiescent current; (6)Soft-Start: MIC94062-63; (7)Micro-power shutdown <1μA; (8)Load discharge circuit: MIC94061, MIC94063; (9)Space saving 1.2x1.6 mm Thin MLF package.

Diagrams

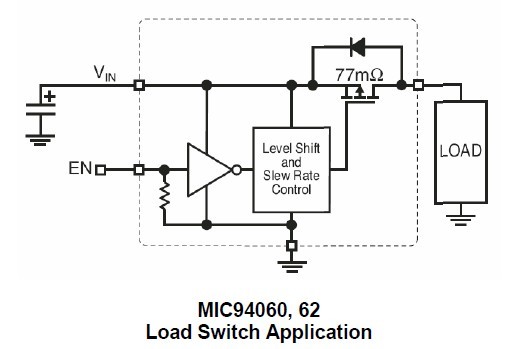

MIC94062YC6 Typical Application

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

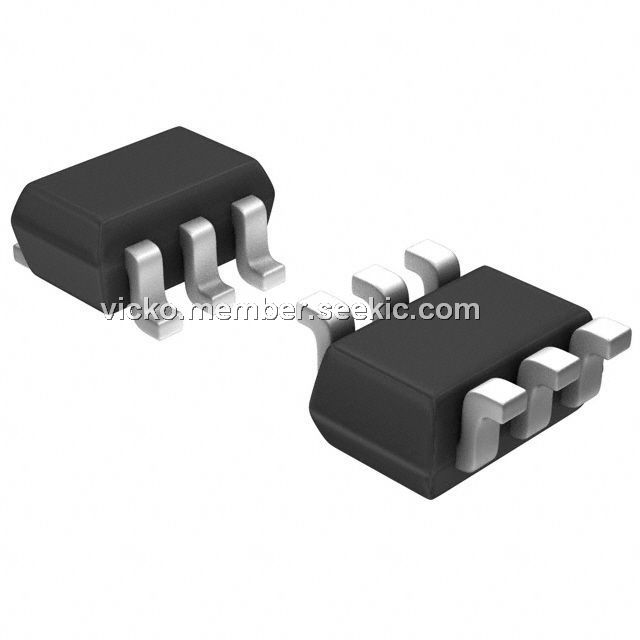

MIC94062YC6 TR
MIC94062YC6 TR

IC PWR SWITCH SOFT HSIDE SC70-06
Data Sheet
0-1: $0.76
1-25: $0.63
25-100: $0.50
100-250: $0.38
250-500: $0.35
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MIC9131YQS TR
MIC9131YQS TR

IC CTRLR DC-DC PWM HV HS 16-QSOP
Data Sheet
0-2500: $1.75
MIC9131YQS
MIC9131YQS

IC CTRLR DC-DC PWM HV HS 16-QSOP
Data Sheet
0-294: $1.90
MIC916YQS TR
MIC916YQS TR

IC OPAMP TRIPLE 135MHZ 16-QSOP
Data Sheet
0-2500: $1.03

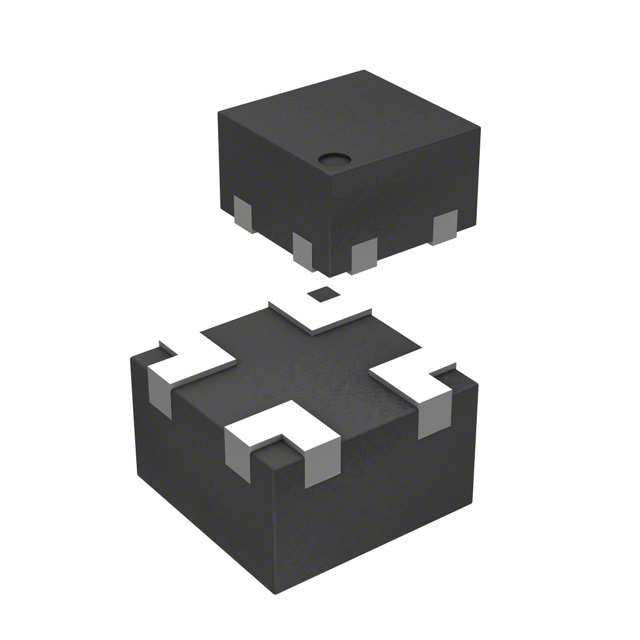

MIC94042YFL TR
