Product Summary
The AD1580ARTZ-REEL7 is a low cost, 2-terminal (shunt), precision band gap reference. It provides an accurate 1.225 V output for input currents between 50 μA and 10 mA. The superior accuracy and stability of the AD1580ARTZ-REEL7 is made possible by the precise matching and thermal tracking of on-chip components. Proprietary curvature correction design techniques have been used to minimize the nonli-nearities in the voltage output temperature characteristics. The AD1580ARTZ-REEL7 is stable with any value of capacitive load.
Parametrics
AD1580ARTZ-REEL7 absolute maximum ratings: (1)Reverse Current: 25 mA; (2)Forward Current: 20 mA; (3)Internal Power DissipationSOT-23 (RT): 0.3 W; (4)Storage Temperature Range: -65℃ to +150℃; (5)Operating Temperature Range: -55℃ to +125℃; (6)Lead Temperature, Soldering: Vapor Phase (60 sec): 215℃; Infrared (15 sec): 220℃; (7)ESD Susceptibility: Human Body Model: 4 kV; Machine Model: 400 V.
Features
AD1580ARTZ-REEL7 features: (1)Wide operating range: 50 uA to 10 mA; (2)Initial accuracy: ±0.1% maximum; (3)Temperature drift: ±50 ppm/℃ maximum; (4)Output impedance: 0.5 Ω maximum; (5)Wideband noise (10 Hz to 10 kHz): 20 μV rms; (6)Operating temperature range: -40℃ to +85℃; (7)High ESD rating: 4 kV human body model; 400 V machine model; (8)Compact, surface-mount SOT-23 and SC70 packages.

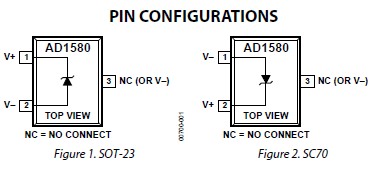

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD1580ARTZ-REEL7 |
|

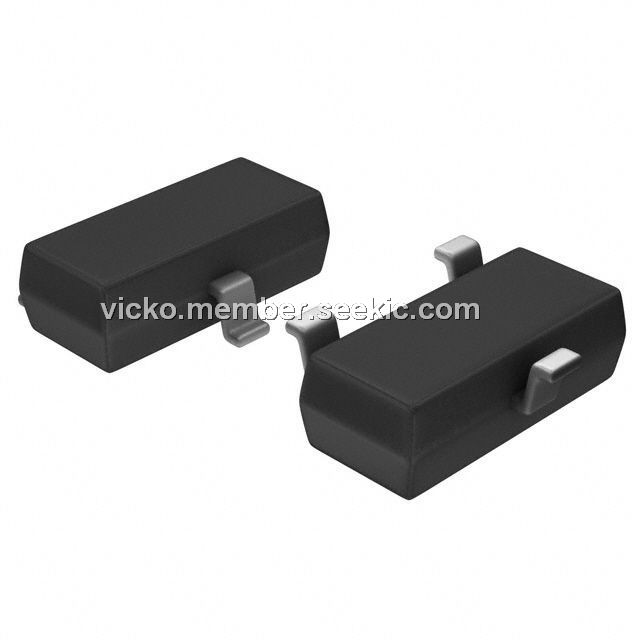

IC VREF SHUNT PREC 1.225V SOT23 |
Data Sheet |
|
|
||||||||||||||||||
