Product Summary
The MIC2544-1YMM is an integrated high-side power switch optimized for low loss dc power switching and other power management applications, including Advanced Configuration and Power Interface (ACPI). The MIC2544-1YMM is a cost-effective, highly integrated solution that requires few external components to satisfy USB and ACPI requirements. Load current management features include a precision resistor programmable output current-limit and a soft-start circuit which minimizes inrush current when the switch is enabled. Thermal shutdown, along with current-limit, protects the switch and the attached device. The MIC2544-1YMM open-drain flag output is used to indicate current-limiting or thermal shutdown to a local controller. The enable signal is compatible with both 3V and 5V logic, and is also used as the thermal shutdown latch reset for the MIC2548. The MIC2544-1YMM is available in active-high and active-low enable versions in the 8-pin SOP (small-outline package) and 8-pin MSOP (micro-small-outline package).
Parametrics
MIC2544-1YMM absolute maximum ratings: (1)Supply Voltage (VIN):+6.0V; (2)Output Voltage (VOUT): +6.0V; (3)Output Current (IOUT): Internally Limited; (4)Enable Input (VEN): –0.3V to VIN+0.3V; (5)Fault Flag Voltage (VFLG): +6.0V; (6)Fault Flag Current (IFLG): 50mA; (7)Storage Temperature (TS): -65℃ to +150℃; (8)Junction Temperature (TJ): Internally Limited; (9)Lead Temperature (soldering 5 sec.): 260℃; (10)ESD Rating: 2kV.
Features
MIC2544-1YMM features: (1)2.7V to 5.5V input; (2)Adjustable current limit up to 1.5A; (3)Reverse current flow blocking (no body diode); (4)75μA typical on-state supply current; (5)1μA typical off-state supply current; (6)120mΩ maximum on-resistance; (7)Open-drain fault flag; (8)Thermal shutdown; (9)Thermal shutdown output latch (MIC2548); (10)2ms (slow) turn-on and fast turnoff; (11)Available with active-high or active-low enable.

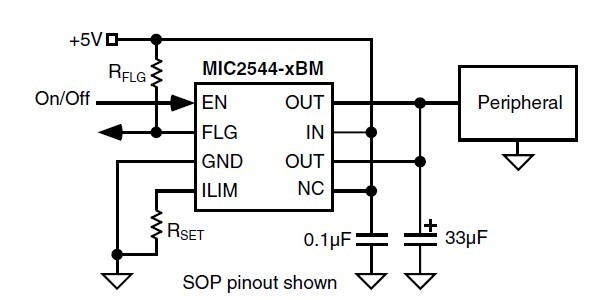

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC2544-1YMM |
|

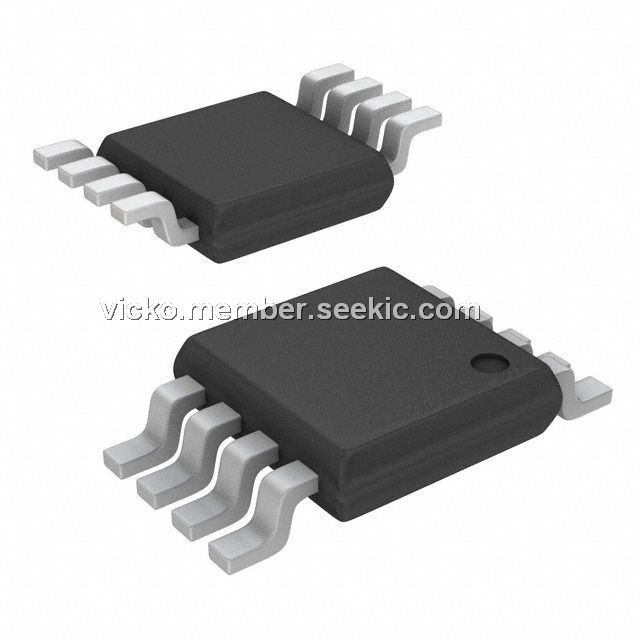

IC SW CURR LIMIT HI SIDE 8-MSOP |
Data Sheet |
|
|
||||||||||||||
|
MIC2544-1YMM TR |
|
IC SW CURR LIMIT HI SIDE 8-MSOP |
Data Sheet |
|
|
||||||||||||||
