Product Summary

The MC100LVELT22DR2G is a dual LVTTL/LVCMOS to differential LVPECL translator. Because LVPECL (Low Voltage Positive ECL) levels are used, only +3.3 V and ground are required. The small outline 8-lead package and the low skew, dual gate design of the LVELT22 make it ideal for applications which require the translation of a clock and a data signal.

Parametrics

Absolute maximum ratings:(1)DC Supply Voltage (Referenced to GND), VCC: 7.0V ; (2)Input Voltage, VIN: 0 to VCCV ; (3)Current Applied to Output in Low Output, State Continuous, Iout: 50mA; (4)Current Applied to Output in Low Output, Surge: 100mA ; (5)Operating Temperature Range, TA: –40 to +85°C ; (6)Storage Temperature Range, Tstg: –55 to +150°C.

Features

Features:(1)350ps Typical Propagation Delay; (2)<100ps Output–to–Output Skew; (3)Differential LVPECL Outputs; (4)Small Outline SOIC Package; (5)Flow Through Pinouts.

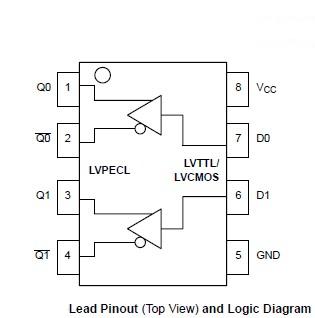

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

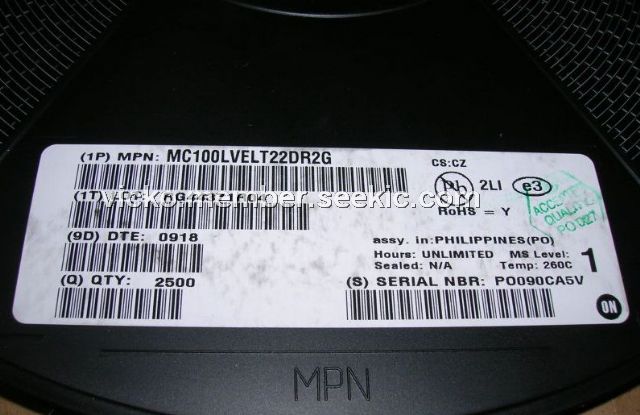

MC100LVELT22DR2G
MC100LVELT22DR2G
ON Semiconductor
Translation - Voltage Levels 3.3V Dual LVTTL/ LVCMOS to LVPECL
Data Sheet
0-1790: $1.26
1790-2000: $1.19
2000-2500: $1.19
2500-5000: $1.15
