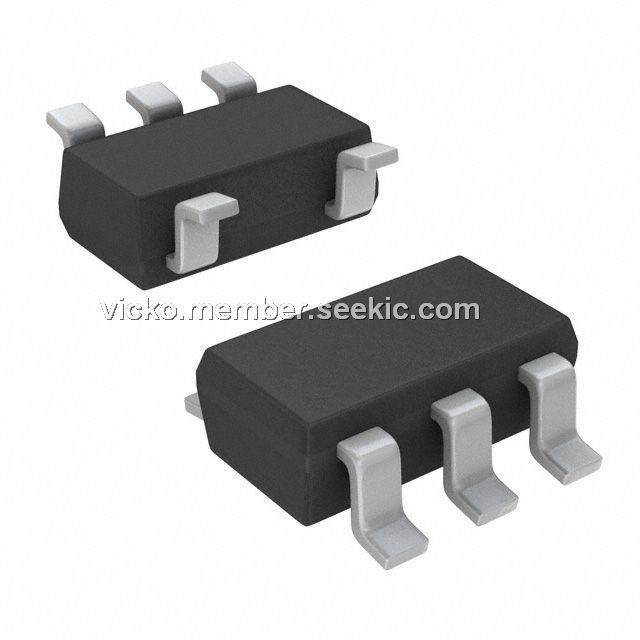

LP2985IM5X-3.0

Micropower, 150mA, Low-Noise, Ultra Low-Dropout, CMOS Voltage Regulator, SOT23-5, 0.3Ω typical

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.18~0.26 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.18~0.26

PartNumber:: LP2985IM5X-3.0

Brand:: National Semiconductor - NS | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. ken Skype : vicko-ken's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-21

From Other Seller

Part Number:LP2985IM5X-3.0
US $0.18 - 0.26
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LP2985IM5X-3.0 is a 150 mA, fixed-output voltage regulator designed to provide ultra low-dropout and low noise in battery powered applications. Using an optimized VIP (Vertically Integrated PNP) process, the LP2985IM5X-3.0 delivers unequalled performance in all specifications critical to battery-powered designs. The applications of it are Cellular Phone, Palmtop/Laptop Computer, Personal Digital Assistant (PDA), Camcorder, Personal Stereo, Camera.

Parametrics

LP2985IM5X-3.0 absolute maximum ratings: (1) Storage Temperature Range:-65℃ to +150℃; (2) Operating Junction Temperature Range:-40℃ to +125℃; (3) Lead Temperature (Soldering, 5 sec.):260℃; (4) ESD Rating:2 kV; (5) Power Dissipation:Internally Limited; (6) Input Supply Voltage (Survival):-0.3V to +16V; (7) Input Supply Voltage (Operating):2.5V to +16V; (8) Shutdown Input Voltage (Survival):-0.3V to +16V; (9) Output Voltage (Survival): -0.3V to +9V; (10) IOUT (Survival):Short Circuit Protected; (11) Input-Output Voltage(Survival):-0.3V to +16V.

Features

LP2985IM5X-3.0 features: (1)Ultra low dropout voltage; (2)Guaranteed 150 mA output current; (3)Smallest possible size (SOT-23, micro SMD package); (4)Requires minimum external components; (5)Stable with low-ESR output capacitor; (6)<1 μA quiescent current when shut down; (7)Low ground pin current at all loads; (8)Output voltage accuracy 1% (A Grade); (9)High peak current capability; (10)Wide supply voltage range (16V max); (11)Low ZOUT: 0.3Ω typical (10 Hz to 1 MHz); (12)Overtemperature/overcurrent protection; (13)-40℃ to +125℃ junction temperature range; (14)Custom voltages available.
