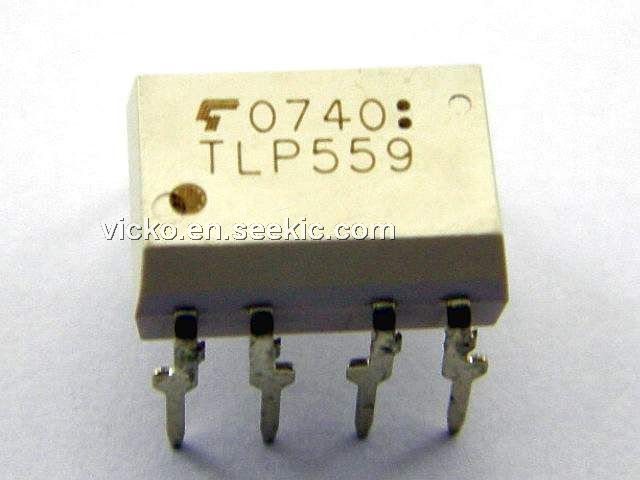

The TOSHIBA TLP559(IGM) consists of a GaAlAs high-output light
emitting diode and a high speed detector of one chip photo diodetransistor.
This unit is 8-lead DIP package.
TLP559(IGM) has no internal base connection,and a Faraday shield
integrated on the photodetector chip provides an effective common
mode noise transient immunity.
TLP559(IGM) guarantees minimum and maximum of propagation
delay time,switching time dispersion,and high common mode
transient immunity.There for TLP559(IGM) is suitable for isolation
interface between IPM(Intelligent Power Module) and control IC
circuits in motor control application.
Features
Isolation Voltage : 2500 Vrms (Min)
Common Mode Transient Immunity
:±10kV/μs (Min)
@VCM = 1500 V
Switching Time : tpHL , tpLH = 0.1μs (Min)
= 0.8μs (Max)
@IF = 10 mA , VCC = 15 V , RL = 20 kΩ , Ta = 25°C
Switching Time Dispersion : 0.7μs (Max)
(|tpLH?tpHL|)
TTL Compatible
UL Recognized : UL1577, File No. E67349
