Product Summary

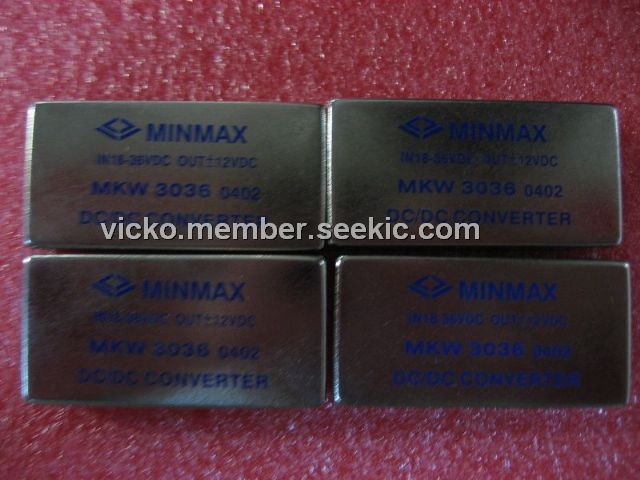

The MKW3036 is a 20W, Wide Input Range, Single & Dual Output DC/DC Converter.
Parametrics
MKW3036 absolute maximum ratings: (1)Input Surge Voltage (1000 mS): -0.7 to 25 VDC at 12VDC Input Models, -0.7 to 50 VDC at 24VDC Input Models, -0.7 to 100 VDC at 48VDC Input Models; (2)Lead Temperature (1.5mm from case for 10 Sec.): 260 ℃; (3)Internal Power Dissipation: 4,500 mW.
Features
MKW3036 features: (1)Efficiency up to 89%; (2)Soft Start; (3)Remote On/Off Control; (4)Six-Sided Shielding; (5)Complies with EN55022 Class A; (6)CSA1950 Safety Approval; (7)2:1 Wide Input Range; (8)MTBF > 800,000 Hours; (9)1500VDC Isolation; (10)Over Voltage Protection.

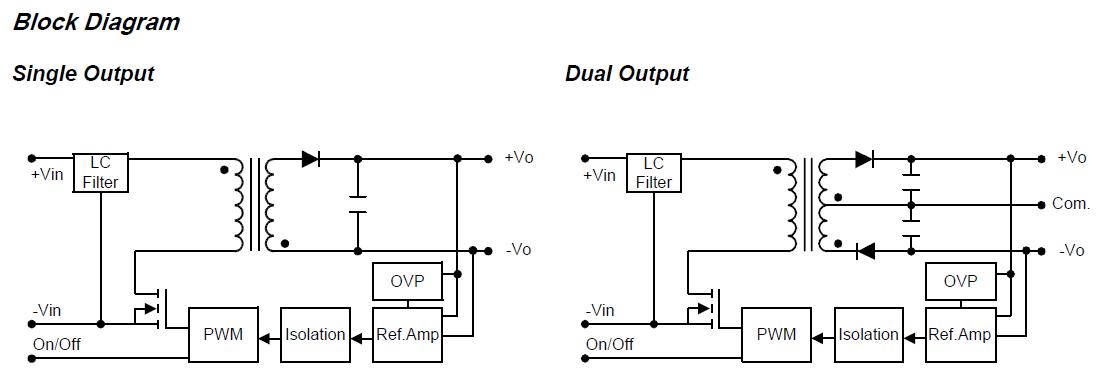

Diagrams
 |
 MKW3000 |
Other |
|
Data Sheet |
Negotiable |
|
||||
